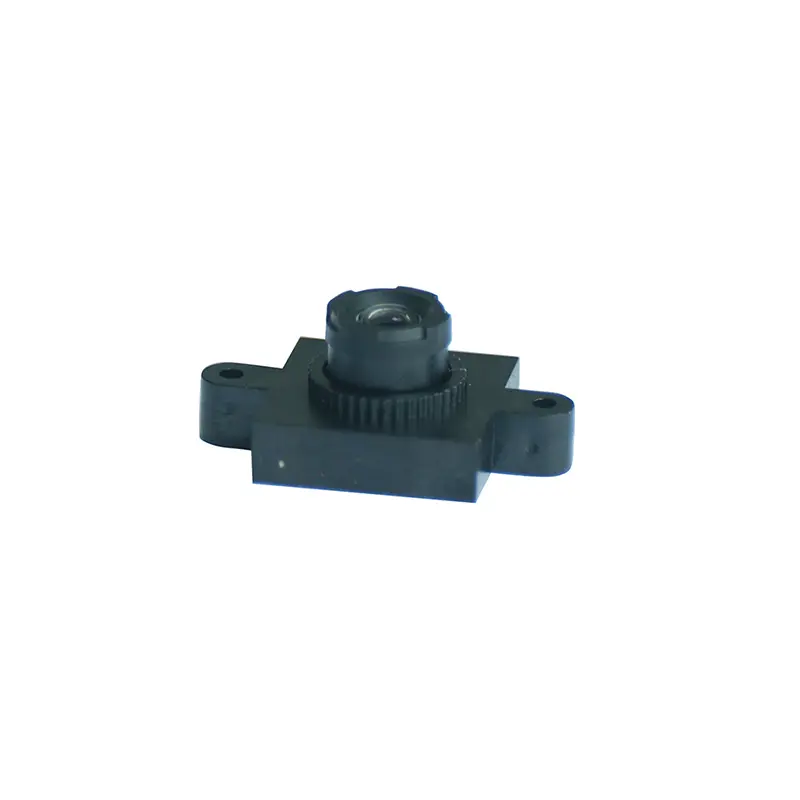

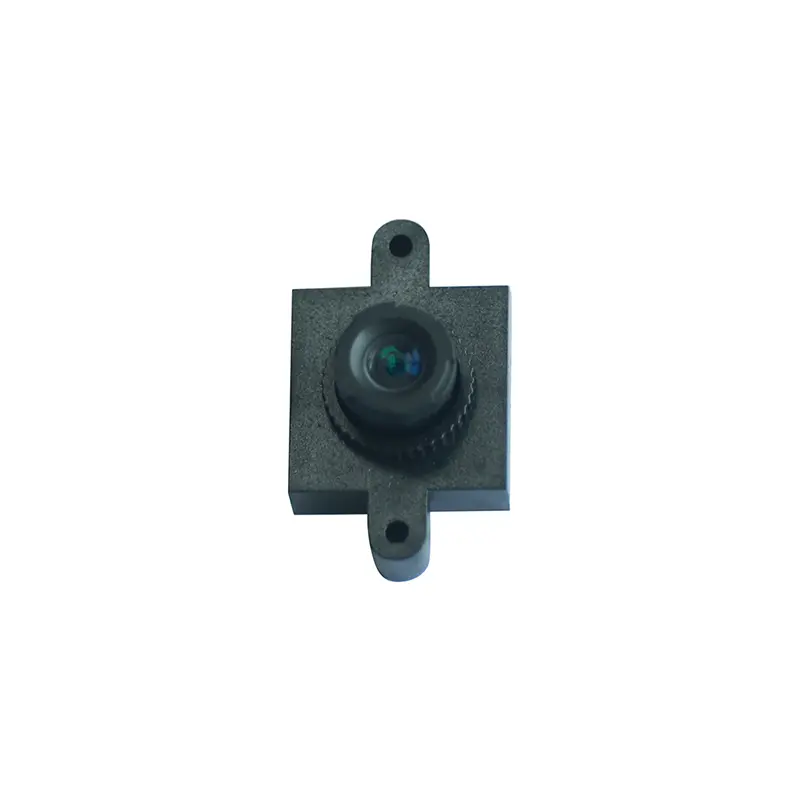

1/2.7inch 3.2mm wide FOV Low distortion M8 board lens

Short Description:

EFL 3.2mm, Fixed-Focal designed for 1/2.7inch sensor, High resolution surveillance camera S mount lens

All S-mount or board mount lenses are compact, lightweight, and highly durable, they typically do not contain any internal moving focusing elements. Similar to the M12 lens, the M8 lens compact size enables easy integration into various devices, making them an ideal choice for applications such as compact sports cameras and IoT devices.
The distortion, also known as Aberration, arises from the discrepancy in the diaphragm aperture impact. As a result, distortion only alters the Imaging position of off-axis object points on the ideal plane and distorts the shape of the image without affecting its clarity. JY-P127LD032FB-5MP is designed for 1/2.7inch sensor with low distortion that TV distortion less than 1.0%. Its low distortion substantially enhances detection accuracy and stability to reach the measurement limit of top optical detection instruments.

Send email to us

Product Detail

Product Tags

Product Specifications

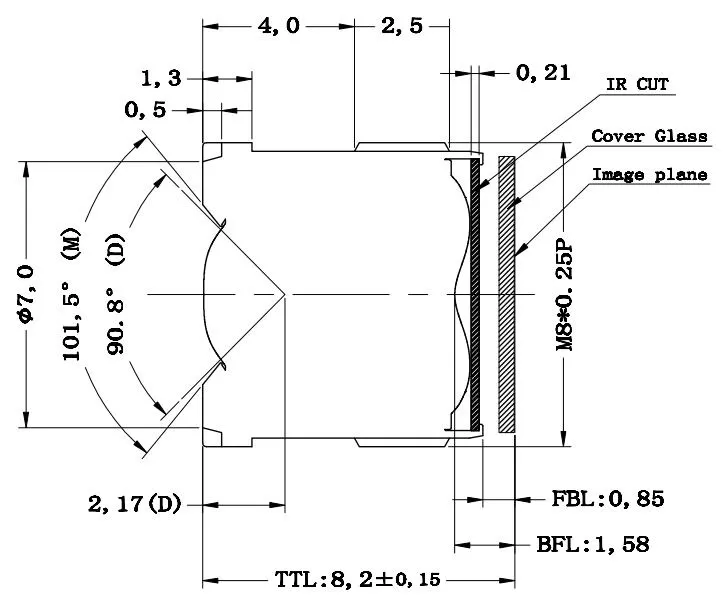

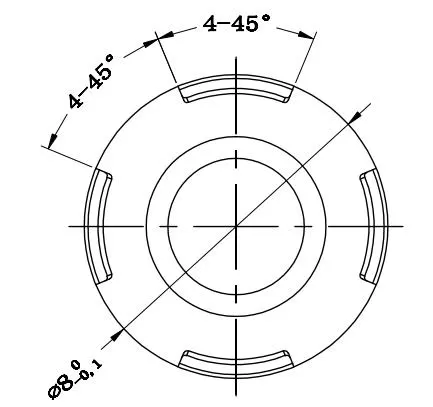

Dimensions

	ITEM	PARAMETERS
1	Model NO.	JY-P127LD032FB-5MP
2	Construction	5P+IR
3	Resolution	5M
4	Format	1/2.7”
5	EFL	3.2mm
6	F-number	F2.4
7	Distortion	TV Distortion <1.0%
8	Relative illumination	>43% at y=2.892mm
9	Field of view(degree)	(D)FOV 92°（y=3.32mm）
		(H) FOV 83°（y=2.892mm）
		(V) FOV 55°（y=1.632mm）
10	Image Circle	Max，￠7.2mm
11	BFL(Optical)	1.58mm
12	FBL	0.9mm
13	TTL	8.2mm
14	CRA	<20.5°
15	Barrel thread	M8*0.25
16	IR FIL TER	650
17	Temperature range	-20°---- +80°

Product Features

● Focal length:3.2mm
● Diagonal field of view: 92°
● Barrel thread: M8*0.25
● Low Distortion: TV Distortion <1.0%
● High resolution:5 million HD pixels, IR filter and Lens Holder are available upon request.
● Environmentally friendly design - no environmental impacts are used in optical glass materials, metal materials and package material

Application Support

If you require assistance in finding the right lens for your specific application, please don't hesitate to contact us with detailed information. Our highly skilled design team and professional sales team are ready to provide fast, efficient, and knowledgeable support to help maximize the potential of your vision system. Our primary goal is to match each customer with the right lens that meets their individual needs.
