1/2.7inch M12 mount 3MP 1.75mm fish eye

Short Description:

waterproof Focal length 1.75mm large angle lenses, Fixed-Focal designed for 1/2.7inch sensor, security camera/bullet camera Lenses

Fisheye lenses are well-known for capturing extremely wide panoramas of landscapes and the sky, also using on shooting close-up subjects such as crowds, architecture, and interiors. They are widely used in security cameras, automotive industry applications,360° panoramic systems, drone photography, VR/AR applications, machine vision system.
Generally speaking, the wide Angle of the fisheye can provide a 180degree angle of view, and there are two main types – circular and full frame.
In order to meet the new demands of the lens to work with large format and high-resolution Camera, Jinyuan Optics selected ultra-high quality fisheye lens for your applications. JY-127A0175FB-3MP provides sharp image quality for multi-mega pixels cameras, compatible with 1/2.7inch and smaller sensor, in wide angel of view which is large than 180degree.


Product Detail

Product Tags

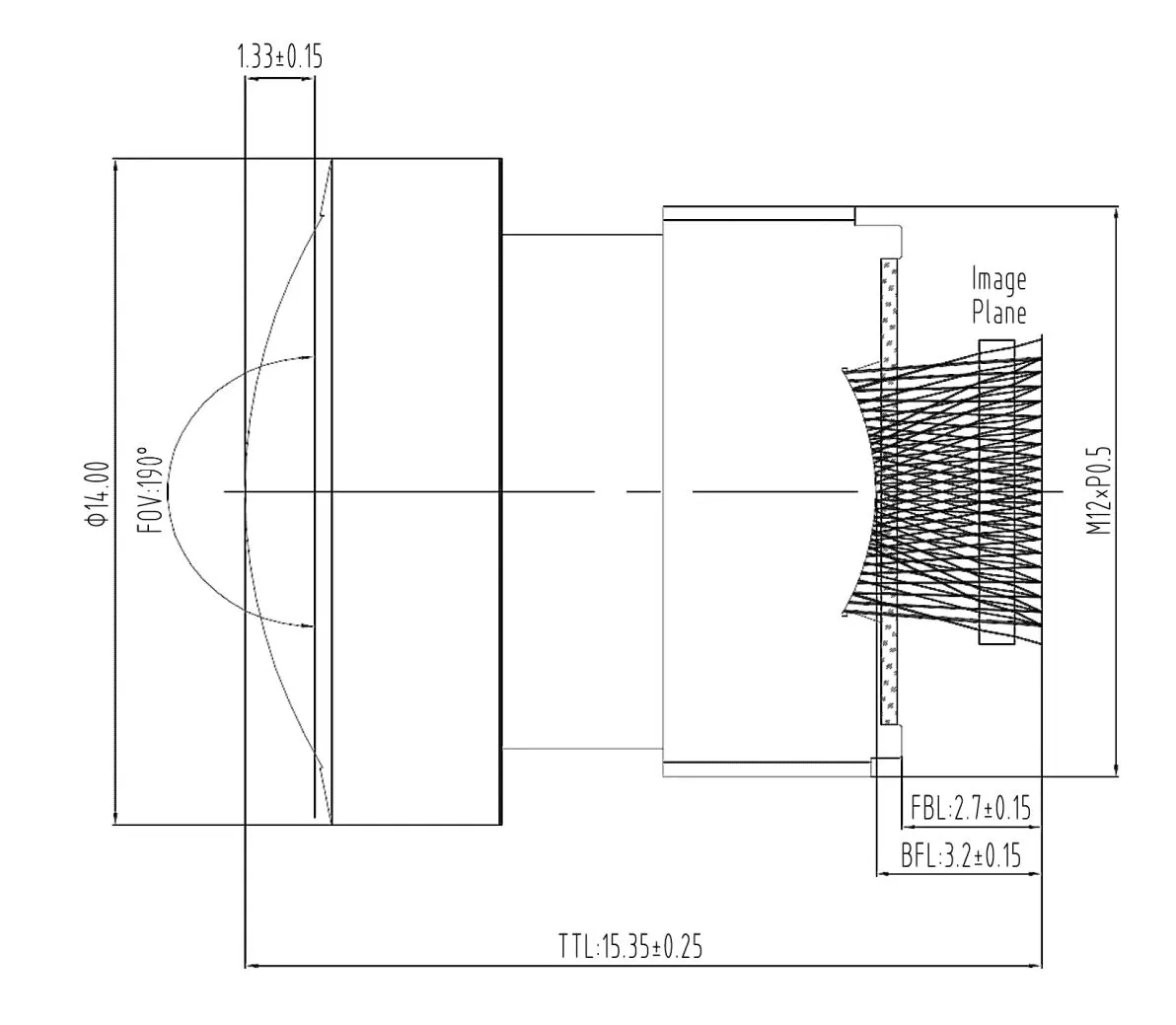

Products specificate

product
Model NO JY-127A0175FB-3MP
 Aperture D/f' F1:2.0
Focal-Length  (mm) 1.75
Format 1/2.7''
Resolution 3MP
Mount M12X0.5
Dx H x V  190°x 170°x 98°
Lens structure 4P2G+IR650
TV distortion <-33%
CRA <16.3°
Operation Zoom Fixed
Focus Fixed
Iris  Fixed
Operating Temerature -10℃~+60℃
Back Focal-Length  (mm) 3.2mm
Flange Back Focal-Length 2.7mm

Products Features

● Fixed focus lens with focal length 1.75mm
● Wide angle of view: 190°x 170°x 98°
● Mount type: standard M12*0.5 threads
● Sharp image quality for multi-mega pixels cameras
● Compact size, incredibly lightweight. It is tiny and takes less space than the official lenses. Install easily and high reliability.
● Environmentally friendly design - no environmental impacts are used in optical glass materials, metal materials and package material

Application Support

If you need any support in finding suitable lens for your camera, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution and maximize the potential of your vision system with the right lens.
