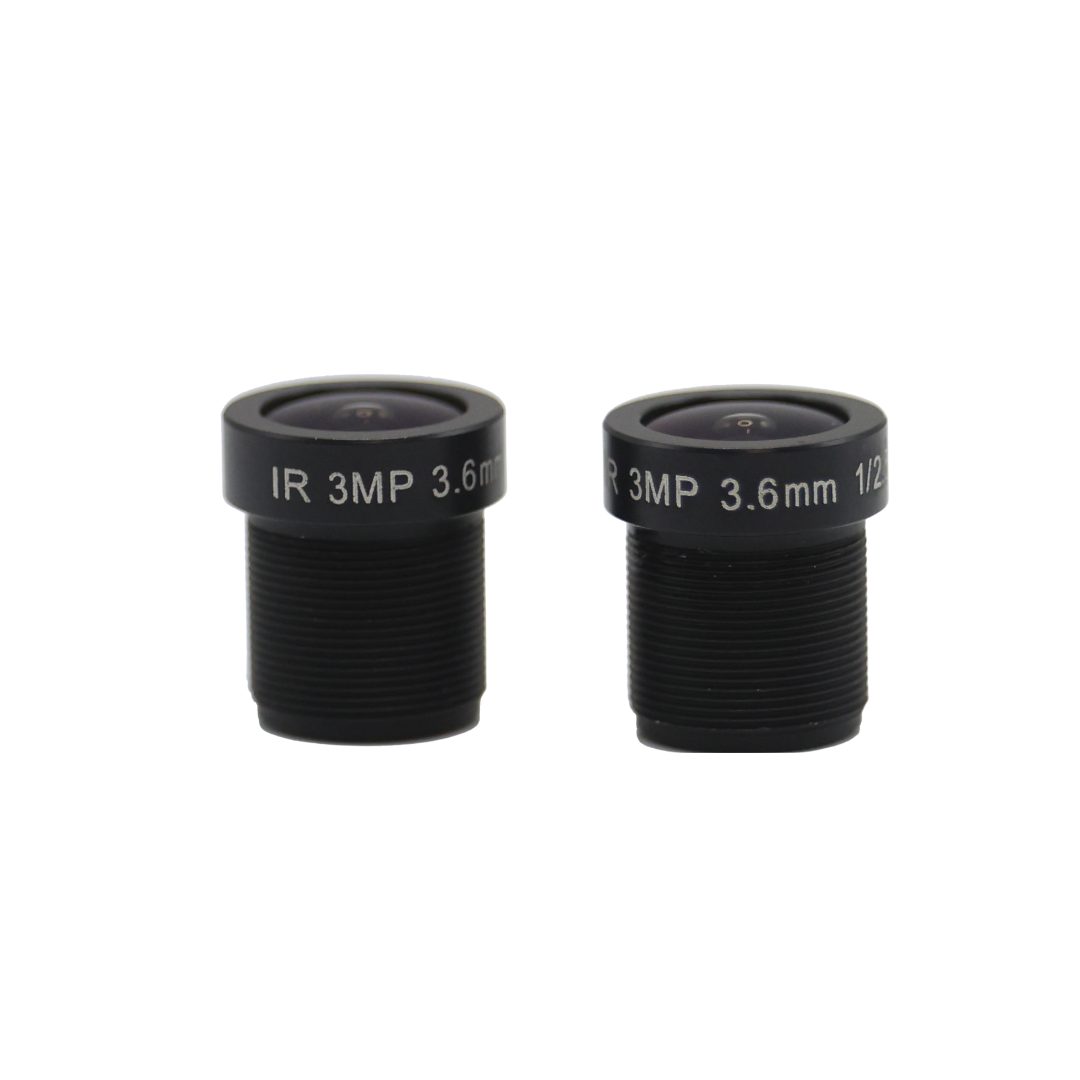

1/2.7inch M12 mount 3MP 3.6mm mini lenses
Product Specifications
Model NO | JY-127A036FB-3MP | |||||||
Aperture D/f' | F1:2.2 | |||||||
Focal-Length (mm) | 3.6 | |||||||
Mount | M12X0.5 | |||||||
FOV(Dx H x V) | 119°×90°×64° | |||||||
Dimension (mm) | Φ14*16.6 | |||||||
Weight (g) | 6.8 | |||||||
M.O.D | 0.2m | |||||||
Operation | Zoom | Fix | ||||||
Focus | Manual | |||||||
Iris | Fix | |||||||
Operating Temerature | -20℃~+60℃ | |||||||
Back Focal-Length (mm) | 5.9mm |
Product Introduction
Lens S mount 3.6 mm F2.2 IR is a fixed lens with a 90° horizontal field of view (HFoV). It is an optional lens for 1080P bullet camera and network cameras. It is designed for security camera with resolutions up to 3 megapixels and is compatible with 1/2.7’’ sensors.M12 lenses come in different focal lengths ranging from wide angle to tele angle. Jinyuan Optics M12 lenses has multiple focal lengths to assure the right working distance can meet your demand for each application.
This lens features high quality hard glass and tough metal, not easily broken with long service period. The glass elements in the lens are carefully designed and manufacture to ensure the image quality and clarity. Its mechanical part adopts a robust construction, including a metal shell and internal components. It is much more durable than plastic case, making the lens suitable for outdoor installations and harsh environments. It is easy to install and disassemble, and does not affect the installation and use of other accessories. It can provide your camera with an ultra-clear field of view and high image clarity.
Application Support
If you need any support in finding suitable lens for your application, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. Our goal is maximizing the potential of your vision system with the right lens.
