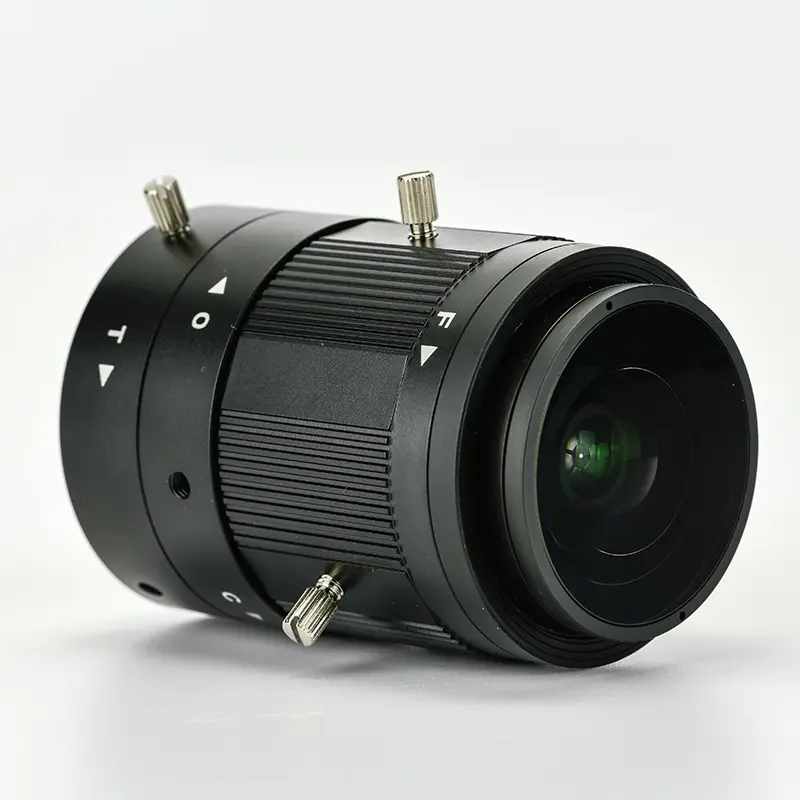

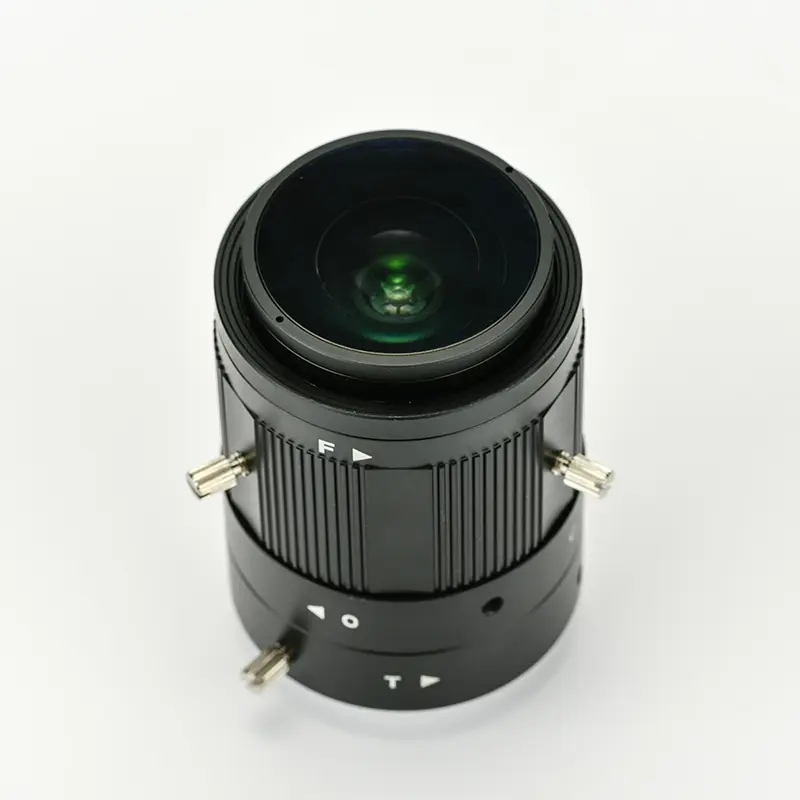

3.6-18mm 12mp 1/1.7”traffic surveillance cameras manual Iris lens

Short Description:

1/1.7″ 3.6-18mm High resolution Varifocal Security Surveillance lens,

ITS, Face Recognition IR Day Night C/CS Mount

This large format High resolution adjustable focus lens is widely applicable in various fields such as traffic monitoring, face recognition, and smart city. Regarding traffic monitoring, it enables long-distance shooting and accurate identification of road vehicles, thereby enhancing traffic management efficiency. In the area of face recognition, the lens possesses high-definition imaging and precise focusing capabilities, which contribute to improving the recognition accuracy of the security system. Additionally, it also holds broad application prospects in fields like industrial production and environmental monitoring.

The day/night confocal characteristic empowers this zoom lens to consistently generate brighter and crisper images in the visible to near-infrared light circumstances, rendering this economical lens appropriate for both day and night applications as well as traditional color or black and white cameras.


Product Detail

Product Tags

Product Specifications

Parameter of Lens
JY-11703618MIR-12MP
  RESOLUTION 12 MP

 a

Image format 1/1.7" (φ9.5)
Focal length 3.6~18mm
Aperture F1.4
Mount C
System Ttl 90.06±0.3mm




(Field Angle)

D×H×V(°)

±5%

  1/1.7(16:9)
  Wide Tele
D 155 33.6
H 117 29.2
V 55 16.4
Distortion -75.67%(W)  ~-3.1%(T)
M.O.D. 0.3m(W)~ 1.5m(T)
Chief Ray Angle 13.2°(W)-9.7 °(T)
Illumination 40.0%(W)-77%(T)
Coating Range 430~650&850-950nm
Mechanical Bfl 7.86(W)
OPtical BFL 8.36

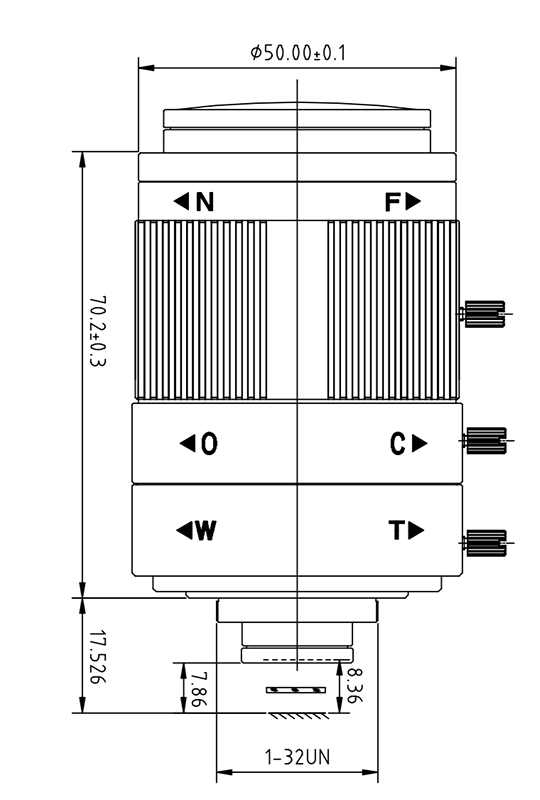

Dimension Φ50X70.20mm
IR Correction Yes




Operation

Iris Manual
Focus Manual
Zoom Manual
Operating temperature

-20℃~+70℃

Product Features

Focal length:3.6-18mm(5X)
1/1.7‘’ lens also accommodates 2/3" and 1/1.8" cameras.
Low distortion image quality with good corner resolution
Aperture range: F2.8-C
Mount type: C mount
High resolution: Ultra-high resolution of 12Mega-pixel
Wide range of operation temperature: Excellent high and low temperature performance, operation temperature from -20℃ to +70℃.

Application Support

If you need any support in finding suitable lens for your camera, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution and maximize the potential of your vision system with the right lens.
