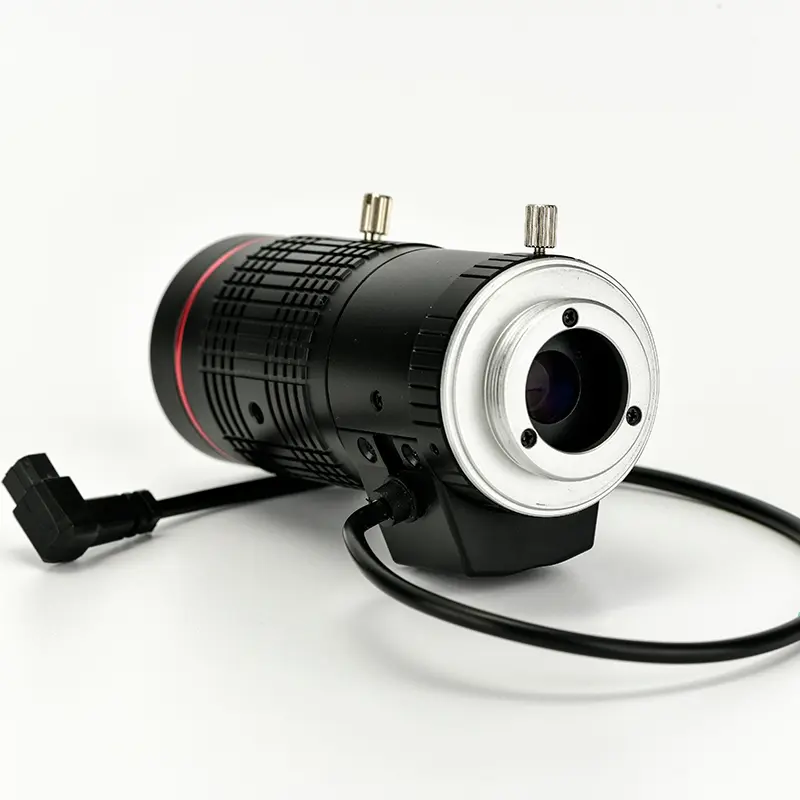

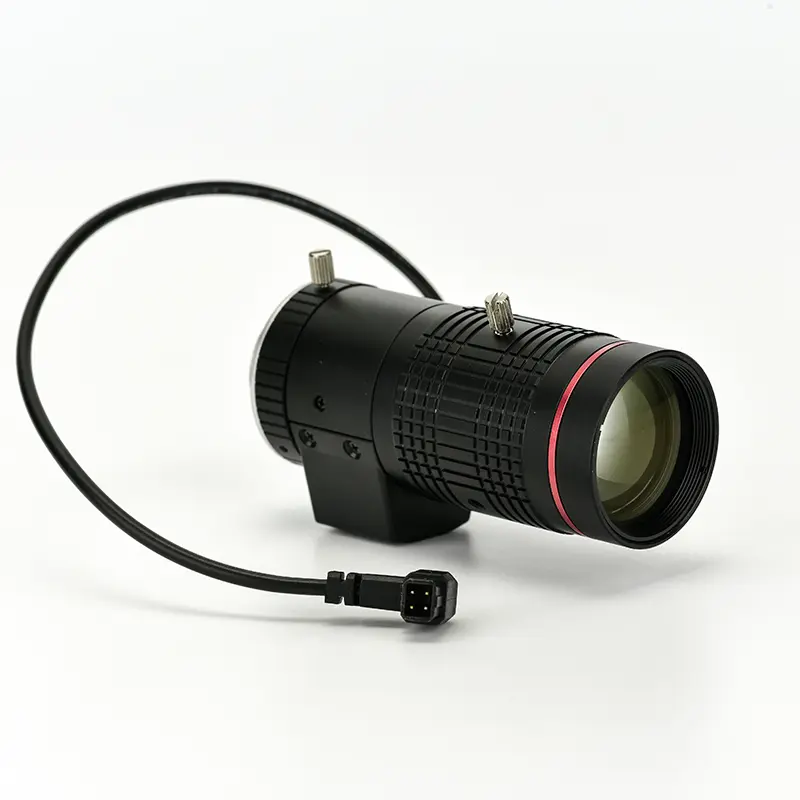

30-120mm 5mp 1/2’’ varifocal traffic surveillance cameras manual Iris lens

Short Description:

1/2″ 30-120mm Tele zoom Varifocal Security Surveillance lens,

ITS, Face Recognition IR Day Night CS Mount

The 30-120mm telephoto lens is primarily utilized in the domain of intelligent traffic cameras, and its application cover high-speed intersections, subway stations, among others. The high-resolution pixels guarantee that the camera can acquire clear picture quality and ensure the accuracy of data analysis by the monitoring system. The large target surface can be adapted to cameras with diverse chips, such as 1/2.5’’, 1/2.7’’, 1/3’’. The metal structure endows it with the characteristic of high temperature resistance.

Furthermore, in practical applications, this type of lens can also be extensively employed in urban road monitoring, parking lot management, and security monitoring around significant buildings. Its outstanding optical performance and stable as well as reliable working performance offer robust support for various types of security equipment. Simultaneously, with the continuous advancement of digital technology, this large-target telephoto lens has also been increasingly and widely utilized in the field of unmanned vehicles and will play a more significant and crucial role in the construction of smart cities in the future.


Product Detail

Product Tags

Product Specifications

Parameter of Lens
JY-12A30120AIR-5MP
RESOLUTION 5MP
Image format 1/2"
Focal length 30~120mm
Aperture F1.8
Mount CS
System TTL 97.45±0.3mm
(Field Angle) D×H×V(°)   1/2" (16:9)
  Wide Tele
D 18.9 2.85
H 15 3.27
V 11 1.84
Chief Ray Angle 3.4°(W)-2.6°(T)
Illumination 40.0%(W)-61.1%(T)
Distortion -3.0%(W)~1.3%(T)
Mechanical Bfl 7.5
Dimension Φ37X89.95mm
Wavelength 430~650&850nm
M.O.D 0.2(W)-1M(T)
IR Correction Yes
Operation Iris DC-IRIS
Focus Manual
Zoom Manual
Operating temperature -20℃~+70℃

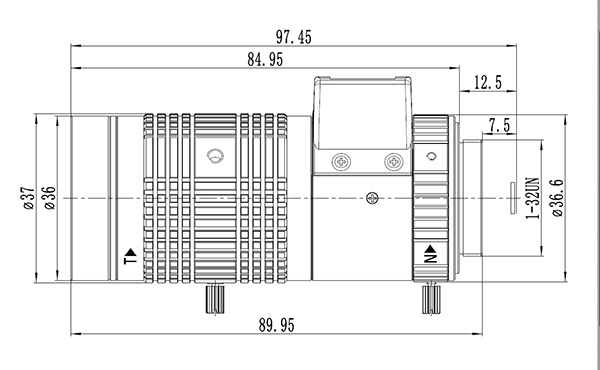

Size
 a

Product Features

Focal length:30-120mm(4X)
1/2‘’ lens also accommodates 1/2.5’’ and 1/2.7" cameras.
Aperture(d/f’’): F1:1.8
Mount type: CS mount
High resolution: Ultra-high resolution of 5Mega-pixel
Wide range of operation temperature: Excellent high and low temperature performance, operation temperature from -20℃ to +70℃.

Application Support

If you need any support in finding suitable lens for your camera, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution and maximize the potential of your vision system with the right lens.
