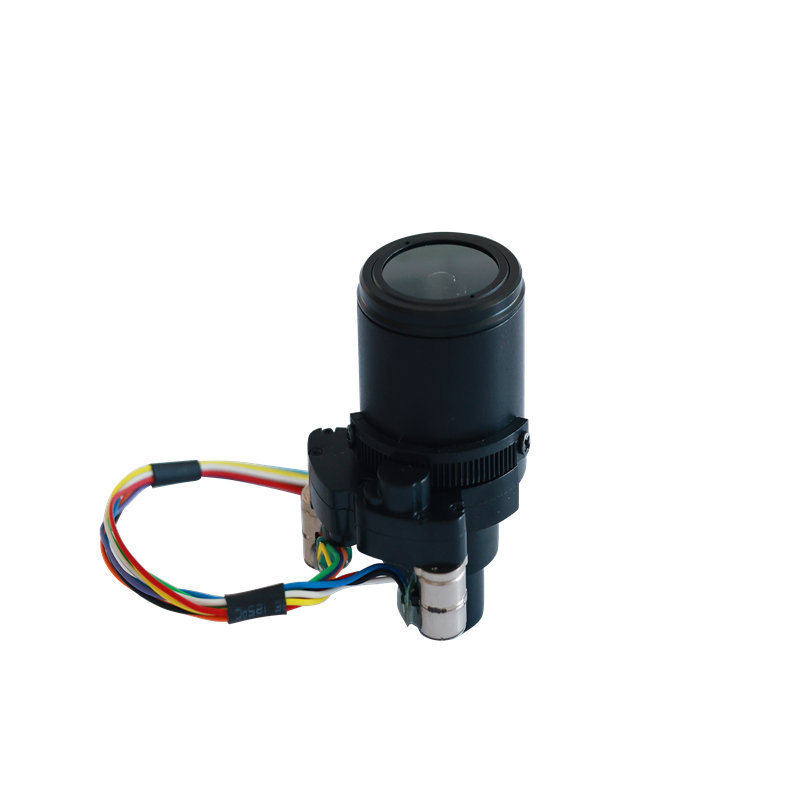

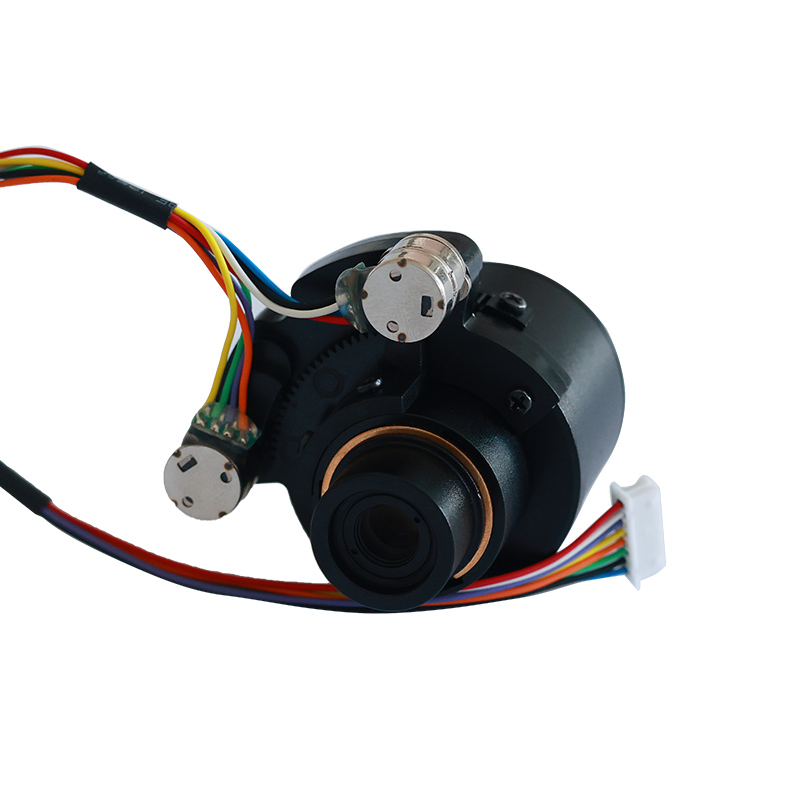

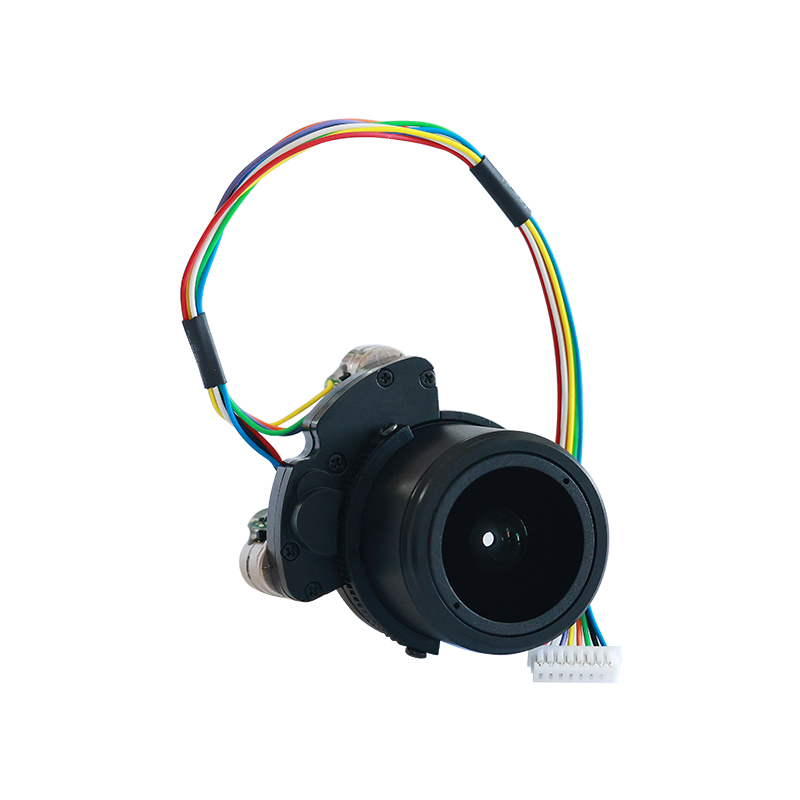

Motorized focus 2.8-12mm D14 F1.4 security camera lens/bullet camera lens

Short Description:

1/2.7inch Motorized zoom and focus 3mp 2.8-12mm Varifocal security camera lens/HD camera lens
The motorized zoom lens, as the expression indicates, is a type of lens capable of attaining a variance in focal length through electrical control. In contrast to traditional manual zoom lenses, electric zoom lenses are more convenient and efficient during operation, and their core working principle resides in precisely governing the combination of lenses inside the lens by virtue of the incorporated micro electric motor, thereby modifying the focal length. The electric zoom lens is capable of adjusting the focal length via remote control to conform to various monitoring circumstances. For instance, the focus of the lens can be modulated by remote control to suit monitored objects at disparate distances, or for prompt zooming and focusing when requisite.


Product Detail

Product Tags

Product Specifications

 8P3A7661 Resolution 3MegaPixel
Image format 1/2.7"
Focal length 2.8~12mm
Aperture F1.4
Mount D14
Field Angle   D×H×V(°) 1/2.7  1/3  1/4
Wide Tele Wide Tele Wide Tele
D 140 40 120 36 82.6 27.2
H 100 32 89 29 64 21.6
V 72 24 64 21.6 27 16.2
Optical Distortion-64.5%~-4.3% -64.5%~-4.3%  -48%~-3.5% -24.1%~-1.95%
CRA ≤6.53°(Wide)
≤6.13°(Tele)
M.O.D. 0.3m

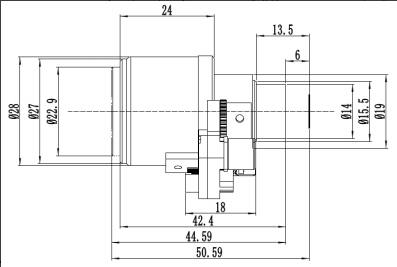

Dimension Φ28*42.4~44.59mm
Weight 39±2g
Flange BFL 13.5mm
BFL 7.1~13.6mm
MBF 6mm
IR Correction Yes
Operation Iris Fixed
Focus DC
Zoom DC
Operating temperature -20℃~+60℃
 12
Size tolerance(mm): 0-10±0.05 10-30±0.10 30-120±0.20
Angle tolerance  ±2°

Product Features

Focal length: wide focal length spanning from 2.8mm to 12mm. Sophisticated high-precision machining and optical design ensure that a distinct image can be acquired at each focal length.
Horizontal angel of view: using on 1/2.7inch sensor 100°~32°
compatible with 1/2.7inch and smaller senor
Metal structure, All glass lenses, operating temperature:-20℃ to +60℃, Long lasting durability
Infrared correction,Day and night confocal

Application Support

If you need any support in finding suitable lens for your camera, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution and maximize the potential of your vision system with the right lens.
